Wifi app
The Ephoca app for Android, iOS, and PC devices enables full functionality of all modes, fan speed, temperature setting, and a comprehensive seven-day programmable timer when connected to the Internet. The app also allows groups to control multiple units as a single unit, simplifying operations. Multiple users can be connected to each AIO unit.
Key Specifications
- Easy and intuitive use
- Secure
- 7-day program with multiple independent schedules per day
- Fan Controls Include: Low, Medium, High and Auto
- Modes include: Cool, Heat, Dehumidify and Fan Only
- Fresh air on/off
- Fahrenheit or Celsius in single degree increments
- Louver contro
- Sleep mode
- Control units individual or as a group
- View all units at one time
- Compatible with Android, iOS and PC
- Internet connection required for timer and remote control
Advanced touchscreen controller
The Wall Mounted, full-color, advanced touchscreen controller is the best choice for the system’s easiest and most comprehensive control. The advanced touchscreen controller can be mounted right next to the light switch and is about the size of a standard light switch plate. Extensive programming offers multiple schedules for each day. Commands are intuitive and straightforward.
Note: This controller requires a gateway board (included) which must be field installed and connected inside the AIO by an electrician or technician and takes approximately 15 minutes to install.
- Full-color TFT Touch Screen
- 4.3” TFT, with 480 x 272 pixel resolution
- 7-day program with multiple schedules per day
- Fan Controls Include: Low, Medium, High and Auto
- Louver control
- Fahrenheit or Celsius in single degree increments
- Modes include: Cool, Heat, Dehumidify and Fan Only
- Fresh air on/off
- Sleep mode
- Material: White Matte plastic frame
- Weight: 0.5 lb
- Dimensions: W: 3.12” x H: 4.76” x D: 0.5” (0.75”D inside j- box)
- Connection: Shielded 4 wire conductor 20 AWG wire with a maximum 30’ run
- Mounting: Mounts to a single gang, standard depth junction box
- Included parts: Touchscreen Controller and Interface to AIO
- 3-year limited warranty
Basic wall controller
The Wall Mounted basic touch controller is simple and easy to use, with icons and text for each button. The sleek design and low profile easily blend into any decor. It features a simple on/off timer. The LED display dims after 15 seconds, making it ideal for any room, especially a bedroom.
Note: This controller requires a gateway board (included) which must be field installed and connected inside the AIO by an electrician or technician and takes approximately 15 minutes to install.
- Surface wall mounted
- Sleek glass touch controller
- Always-on back-lit LED dims after 15 seconds of inactivity
- Modes include: Cool, Heat,
Dehumidify and Fan Only - Fan controls Include: Low, Medium, High and Auto
- Fresh air on/off
- Timer for single on and single off
- Keypad lock
- Fahrenheit or Celsius in single degree increments
- Louver control
- Sleep mode
- Mounting: Surface mounted
- Materials: White Matte plastic frame, glass front
- Dimensions: W: 3.41” x H: 3.35” x D: 0.31”
- Weight: 0.5 lb
- Connection: Shielded 4 conductor 20 AWG wire with a maximum 30’ run
- Included parts: Basic Touch Controller and Interface to AIO
- 3-year limited warranty

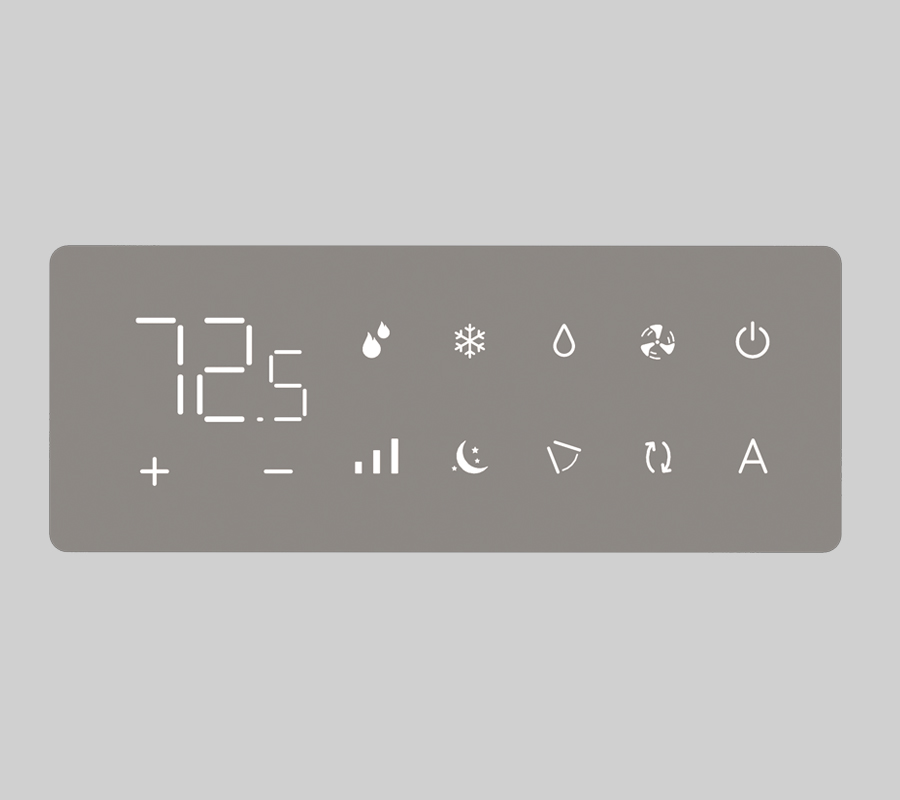

Onboard touch controller
The integrated touch controller offers easy-to-use controls of mode, fan speed, louver swing, setpoint, fresh air and a dimmable screen for nighttime on all AIO units. The controller is also used to program the unit for special settings.
- Touch controller
- Always-on display
- Option to dim when room gets dark
- Fan Controls Include: Low, Medium, High and Auto
- Modes include: Cool, Heat, Dehumidify and Fan Only
- Fresh air on/off
- Fahrenheit or Celsius in single degree increments
- Louver control
- Sleep mode
- Used for programing special features
- Plastic protective cover
- 10-year limited warranty
BACnet and Modbus interface
The BACnet and Modbus gateway enables building management systems (BMS) to control and monitor AIO’s functionality.
Note: This controller requires a gateway board (included) which must be field installed and connected inside the AIO by an electrician or technician and takes approximately 15 minutes to install.
- Enables full control, status and reporting of AIO systems to BACnet and Modbus systems
- View error messages
- On/off
- Set-point
- Modes Including: Cool, Heat, Dehumidify and Fan Only
- Fahrenheit or Celsius in single degree increments
- Fan Speed including: Low, Medium, High and Auto
- Fresh air on/off
- Connection: IP/MSTP gateway
- Dimensions: W: 3.12” x L: 4.76” x H: 1.25”
- Interface mounts inside AIO.
- Included parts: BACnet/ Modbus interface and Interface to AIO
- 3-year limited warranty
Third party gateway
The third-party gateway offers the ability to control AIO with any standard or smart thermostat. AIO’s BLDC inverter compressor can’t be controlled by a regular or smart thermostat that sends an on-off signal. The TPG sends signals from the connected standard or smart thermostat to AIO’s processor, controlling the inverter compressor.
Note: This controller requires a gateway board (included) which must be field installed and connected inside the AIO by an electrician or technician and takes approximately 15 minutes to install.
- Enables all the benefits of a smart thermostat such as Nest™, Ecobee™ etc for timers, controls, etc.
- Included 24V power supply
- On/off
- Set-point
- Modes Including: Cool, Heat, Dehumidify and Fan Only
- Fan Speed including: Low, Medium, High and Auto
- Connections to thermostats include: R, C, Y, W, G1, G2, G3 and 24V power terminals
- Dimensions: W: 2.65’ x L: 3.54” x D: 1.5”
- Weight: 0.5 lb
- Gateway mounts inside AIO.
- Included parts: Third party gateway and Interface to AIO
- 3-year limited warranty
Recessed Touch Controller
The Recessed Touch Controller is elegant and simple to use. This controller is recessed into the wall and easily blend into any decor. The LED display dims after 15 seconds, making it ideal for any room, especially a bedroom. Note: This controller requires a gateway board (included) which must be field installed and connected inside AIO by an electrician or technician and takes approximately 15 minutes to install.
- Recessed into the wall
- Sleek appearance
- Always-on back-lit LED dims after 15 seconds of inactivity
- Modes include: Cool, Heat, Dehumidify and Fan Only
- Fan controls Include: Low, Medium, High and Auto
- Fresh air on/off
- Fahrenheit or Celsius in single degree increments
- Louver control
- Sleep mode
- Mounting: Junction box
- Materials: White Matte plastic frame, plastic front
- Dimensions: W: 4.41” x H: 2.35” x D: 0.15
- Weight: 0.5 lb
- Connection: Shielded 4 conductor 18 AWG wire with a maximum 40’ run
- Included parts: Recessed Touch Controller and Interface to AIO
- 3-year limited warranty

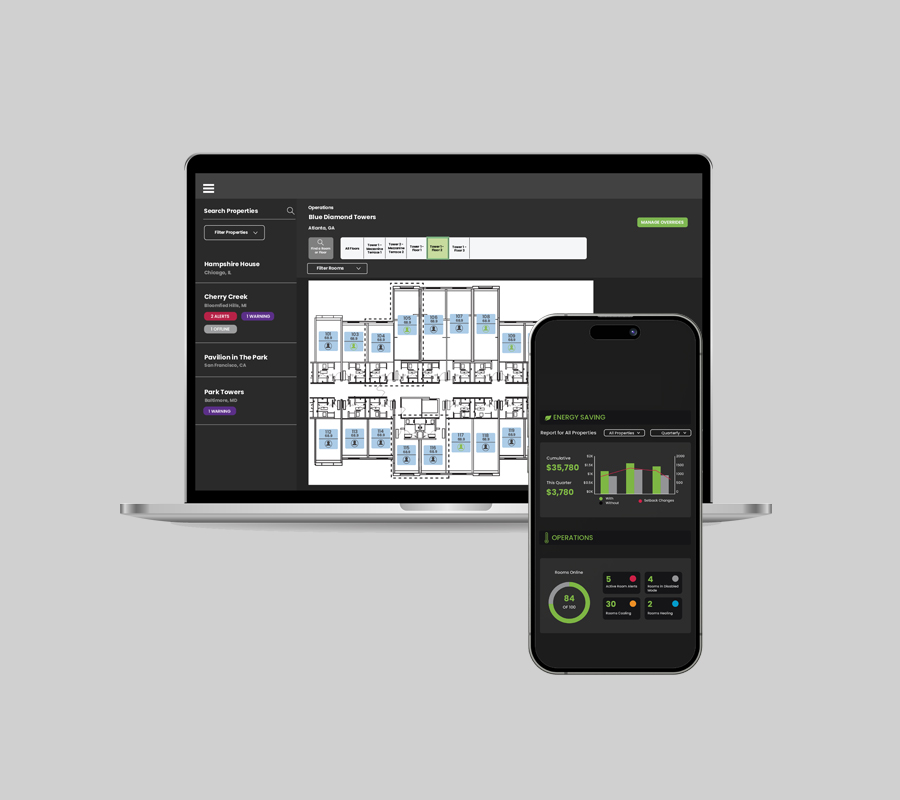

Monitor, Optimize and Control From Anywhere

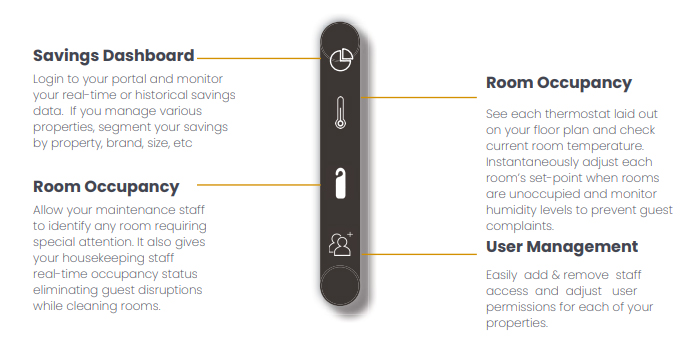

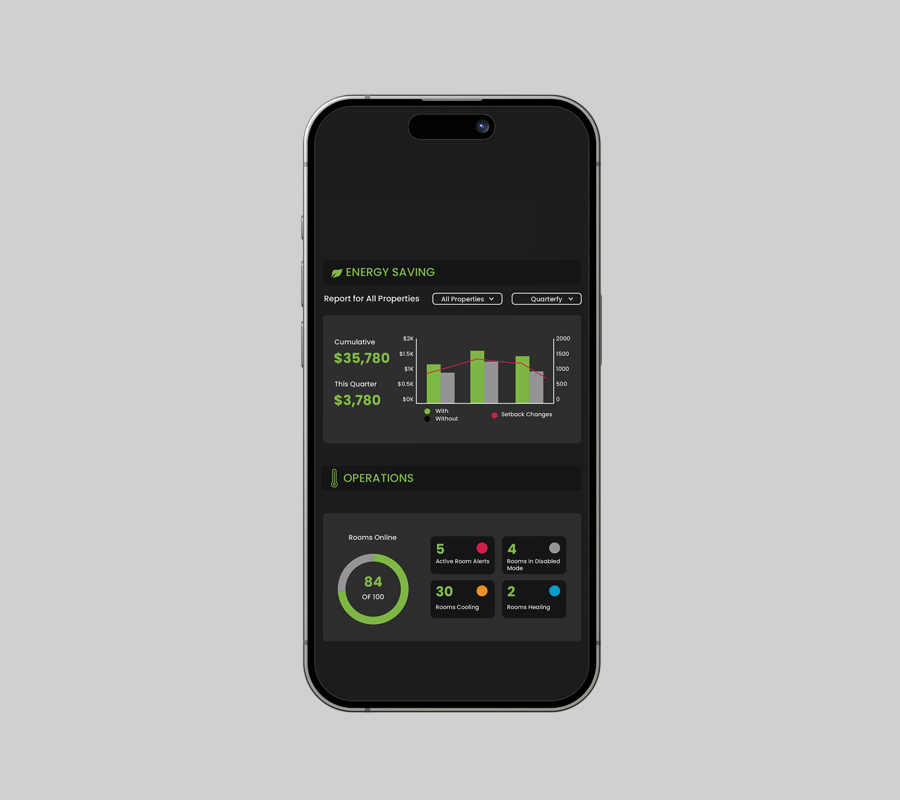

OSMO EOS (Energy Optimization Service) is a cloud-based dashboard and smartphone app to help you monitor
your properties in real-time and change unoccupied settings on the fly.
OSMO OES’s proprietary communication protocol leverages low frequency radio waves that easily penetrate thick
walls and cover long distances, eliminating the need for additional networking equipment and keeping your Wi-Fi
network free of any interference.
For pricing, please request a quote from your rep
Reduce HVAC Runtime By Up To 40%
AIO EOS Plus, is a subscription-based service, dedicated to optimizing energy savings through ongoing monitoring of your energy management. Its purpose is to equip building owners and property staff with the necessary tools to stay informed and satisfied with their property’s performance
Frequent turnover in the commercial property industry poses an ongoing challenge of training new staff on existing systems. AIO EOS Plus addresses this challenge by offering remote management, enabling property owners to sustain consistent savings and return on investment. AIO EOS Plus goes beyond mere energy management; it empowers you to master it.
E-Paper Controller for AIO EOS
The E-paper Controller, designed for wall mounting, is an ideal choice for hotels, dormitories, and similar properties seeking centralized control. It seamlessly integrates with the AIO EOS, providing comprehensive control, optimization, and reporting capabilities. Equipped with an integrated occupancy sensor, it can be wired or wireless connected to AIO. The user-friendly commands make it easy to operate. For more details, please scan or click the QR code.
Note: This controller requires a gateway board (included), which must be installed in the field and connected inside the AIO by an electrician or technician. The installation process typically takes around 15 minutes.
- E-paper display
- Integrated occupancy sensor with 94 degree beam width
- Surface Wall Mounted
- Sleek design
- 7 relays
- Modes include: Cool, Heat, Dehumidify and Fan Only
- Fan controls Include: Low, Medium, High and Auto
- Humidity control
- Fahrenheit or Celsius in single degree increments
- Night mode
- Mounting: Surface mounted Materials: White Matte plastic frame, glass front, plastic touch controller
- Dimensions: W: 3.0” x H: 4.73” x D: 1.32”
- DWeight: 0.5 lb
- Connection: wired or wireless 900 MHz frequency with 2 “AAA” batteries
- Included parts: E-Paper Controller and Interface to AIO
- 3-year limited warranty

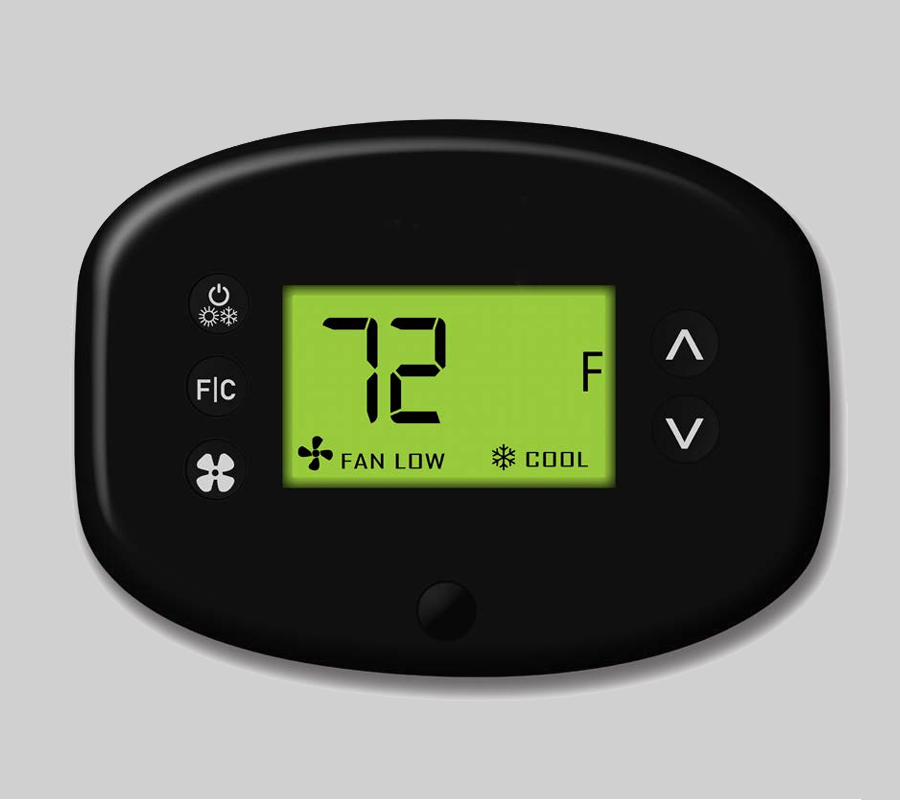

Simple Controller for AIO EOS
The Simple Controller stands out as the easiest-to-use option, perfect for applications where simplicity is paramount. Available in black or white, this controller features an LCD display with physical buttons and seamlessly integrates with AIO EOS, providing comprehensive control, optimization, and reporting capabilities. It includes an integrated occupancy sensor and can connect either through wiring or wireless to AIO. For more details, please scan or click the QR code.
Note: This controller requires a gateway board (included), which must be installed in the field and connected inside the AIO by an electrician or technician. The installation process typically takes around 15 minutes.
- Available in black or white
- LED display
- Physical buttons for temp up and down, on/off, heat/cool and fan speed.
- Integrated occupancy sensor with 94 degree beam width
- Surface Wall Mounted
- 6 relays
- Modes include: Cool, Heat, Dehumidify and Fan Only
- Fan controls Include: Low, Medium, High and Auto
- Humidity control
- Fahrenheit or Celsius in single degree increments
- Mounting: Surface mounted Materials: Black Matte plastic frame
- Dimensions: W: 5.5” x H: 4.0” x D: 0.9”
- DWeight: 0.5 lb
- Connection: wired or wireless 900 MHz frequency with 2 “AA” batteries
- Included parts: Simple Controller and Interface to AIO
- 3-year limited warranty
