Vertical stack XL

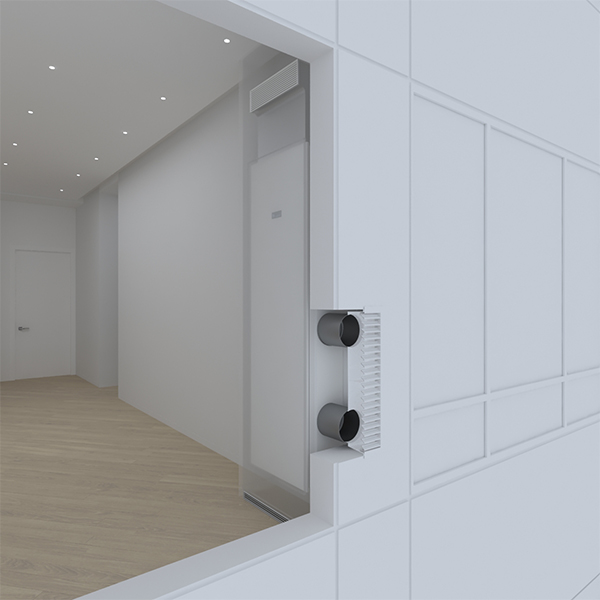

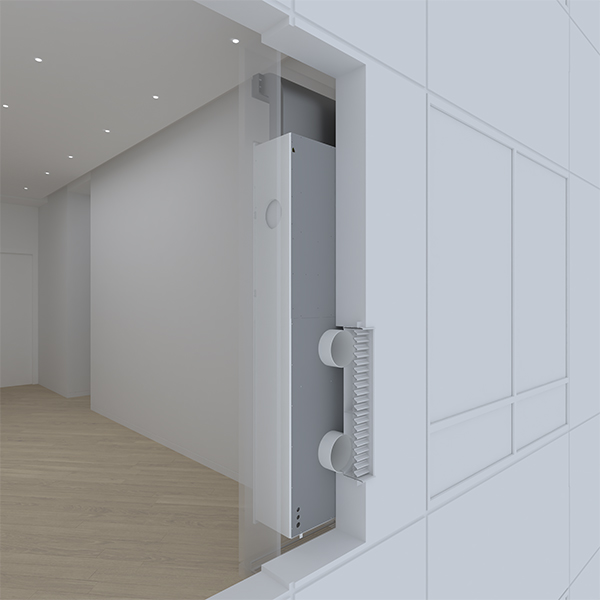

AIO Vertical Stack XL is the higher capacity version of the Vertical Stack and is designed to fit in the same space as a VTAC. The compact 23-inch by 24-inch footprint uses minimal floor space. This unit is perfect anywhere direct venting or ducting is required with up to 0.6” WC external static pressure. Use any style grilles and louvers for maximum design flexibility. A unique feature of the AIO Vertical Stack XL is that it can be installed on a corridor wall, enabling it to be fully serviced without entering the apartment or hotel room. A bathroom exhaust can connect to the dedicated stale air exhaust on either the right or left side. The Vertical Stack XL unit is available with or without the integrated ERV and can be vented directly outside or through ductwork. Watch how it is installed by scanning or clicking the QR code.
List price $9,340 / $11,135 w/ERV
Key Features
Key Features
compact unit
Easy to install
High ESP for internal and external ducting

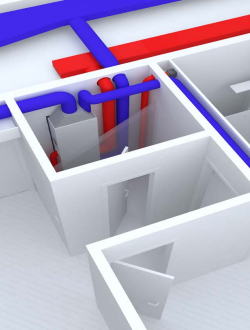

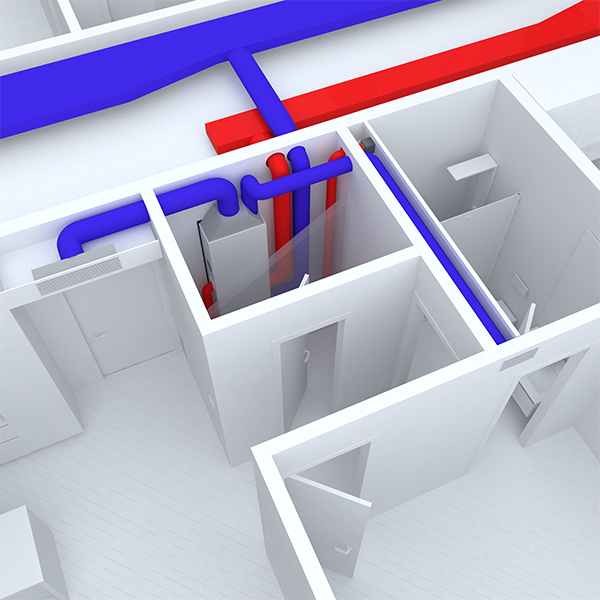

Extraordinary flexible ducting
Bathroom exhaust connection
Auto-restart
Washable filters
Options
Optional 3,600W electric heat
With or without ERV
230V
Hardwire or LCDI cord
R32 or R410a
Operation
Cool, heat, dehumidify, and auto
Selectable fan speeds, low, med, high and auto.
Fresh air ERV – field configurable amount of fresh air
Mounting
Vertical
Airflow
22″ x 31″ external vent
Available 0.7″ WC for external ducting, adapters, and louvers
Available 0.6″ WC for internal ducting and louvers.
Included controls
Onboard touch controller for diagnostics and programing
Controllers Options
WiFi app for android and iPhone
Wall Mounted Advanced touchscreen with a7-day program
Wall Mounted Basic touch controller
3rd party thermostat interface
BACnet/Modbus interface
Key Specifications
| Cooling | Min – max | Btu/h | 4,500 – 24,000 |
|---|---|---|---|
| Efficiency | EER/IEER | 12.6 /15.8 | |
| Heating 47°F | Min – max | Btu/h | 5,000 -24,000 + 12,300 Electric heat |
| Efficiency | COP | 3.83 | |
| Heating 13°F | Min – max | Btu/h | 4,150 – 15,500 +12,300 Electric heat |
| Efficiency | COP | 2.51 | |
| Heating 5°F | Range | Btu/h | 3,850 – 11,800 + 3,000 Electric heat |
| Nominal | Btu/h | 11,200 + 12,300 Electric heat |
| ASHRAE compliance | 62.1 And 62.2 When used with the ERV module |
|
|---|---|---|
| Filter | Outside air | MERV 13 |
| Winter | Sensible % | 83 – 80 |
| Latent % | 730- 65 | |
| Summer | Sensible % | 68- 64 |
| Latent % | 56 – 53 |
| Sound | Indoor | dB(A) | 27 – 45 |
|---|---|---|---|
| Outdoor | 28 – 56 | ||
| Infiltration | STC | 40 | |
| Airflow | Indoor | CFM | 287 -710 |
| Outdoor | 410 -1,150 | ||
| Dimensions | Net | In | 23.4 W x 24.2 D x71.6” H |
What’s inside
No Access Required
No Access Required

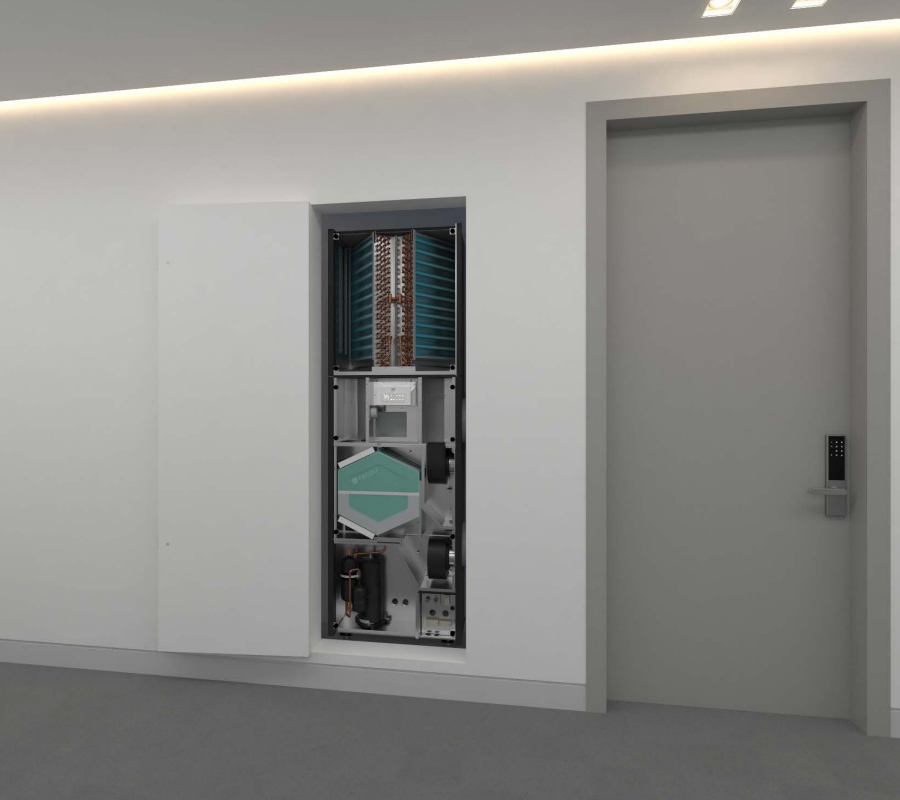

The versatile design of AIO makes the system extremely reliable and inexpensive to maintain. If a repair is needed, a single unit can be taken off-line without affecting the entire system. It’s possible to install AIO Vertical stack XL on the corridor wall of each apartment/hotel room so that all maintenance can be achieved from a common area – at any time, which means no maintenance personnel needs to enter the unit.
Two-Room Quick Plenum
Two-Room Quick Plenum

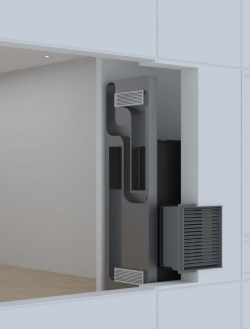

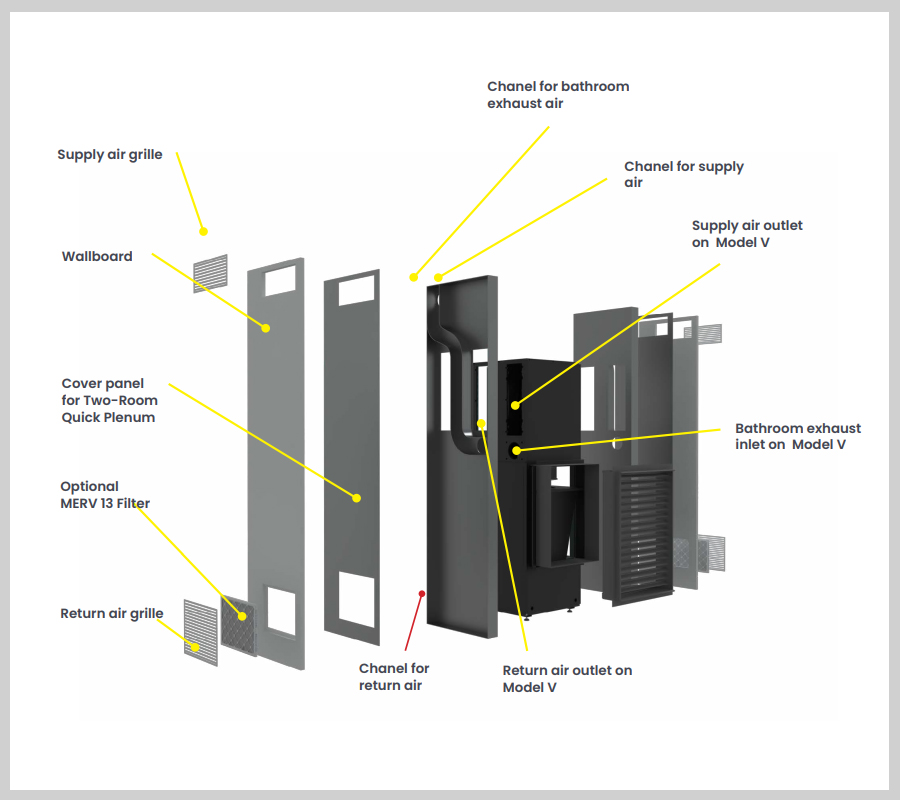

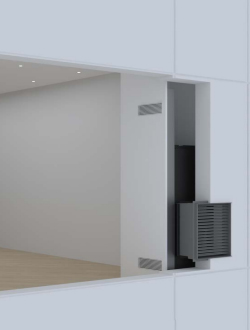

Introducing the Two-Room Quick Plenum—a unique, 3.5” deep plenum designed to fit inside a standard depth wall, offering swift and uncomplicated ducting for individual rooms flanking the Nextac Model V.
This innovative design ensures optimal room configuration, with supply vents located at the top and return vents at the bottom for each room. Furthermore, it includes a dedicated pathway for the bathroom exhaust to connect to the side of the Nextac Model V.
